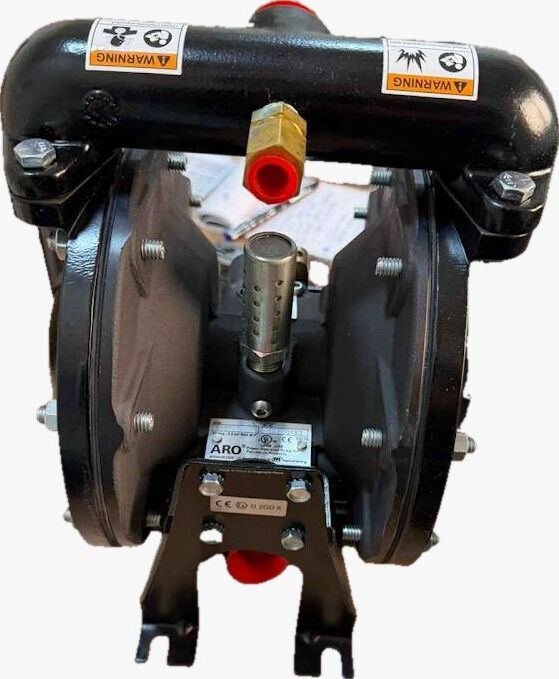

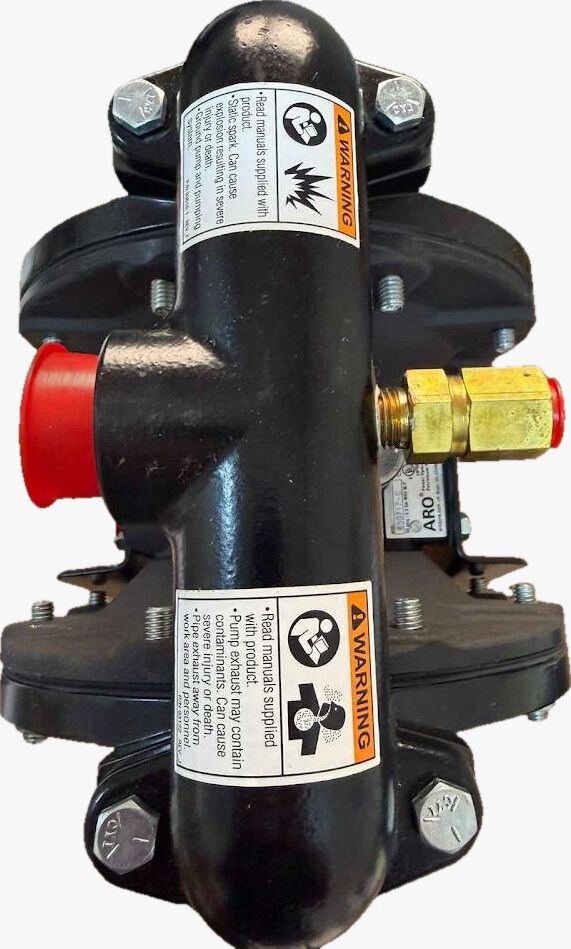

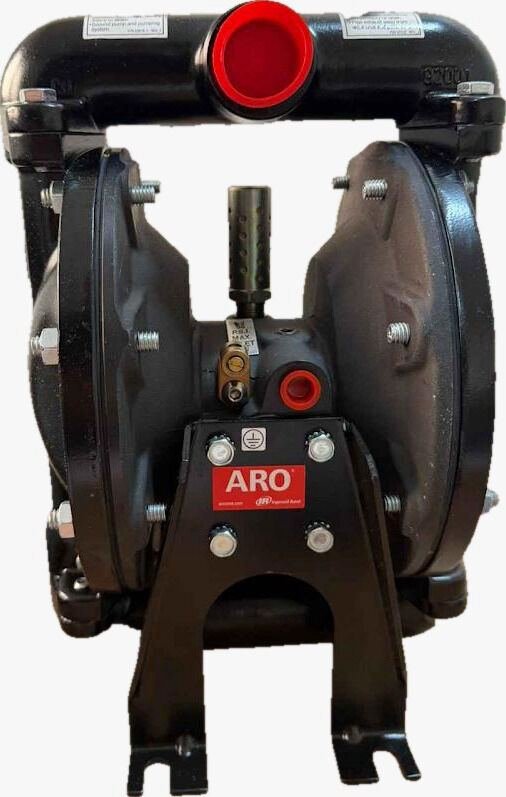

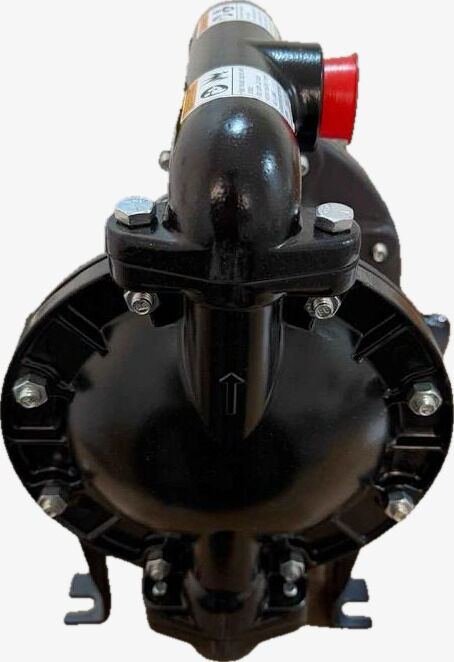

SAR 6500, Brand New IR Air-Operated Diaphragm Pump 1" - 650717-C

Ingersoll Rand ARO 650717-C, a UL listed air-operated double diaphragm pump built for petroleum product transfer. It delivers high volume at low air pressure and is self-priming. It suits bulk loading and unloading, fueling, and fuel transfer applications.

Specifications

Model: 650717-C (Ingersoll Rand / ARO)
Size: 1" NPT inlet/outlet
Max flow: 29 GPM (109.8 LPM)
Max air inlet pressure: 50 PSI (3.4 bar)
Max outlet pressure: 50 PSI (3.4 bar)
Max particle size: 1/8" (3.2 mm)
Temperature range: -12°C to 82°C
Weight: 18.5 lb (8.39 kg)
Body: aluminum
Diaphragm: nitrile
Seat: PVDF (Kynar)
Ball: acetal

Suitable for: diesel, kerosene, aviation fuel, fuel oil

Features

Built-in pressure relief valve that keeps outlet pressure under 50 PSI
Self-priming and able to run dry
Air-operated, so it needs no electric motor
Factory final-tested (pressure test and leak test passed, test tag included)
Comes with the operator’s manual and safety labels

Condition: Brand new, unused
Price: 6500 SAR
Location: Dammam, Saudi Arabia
contact: operation@silverrocksa.com
+966541923671
