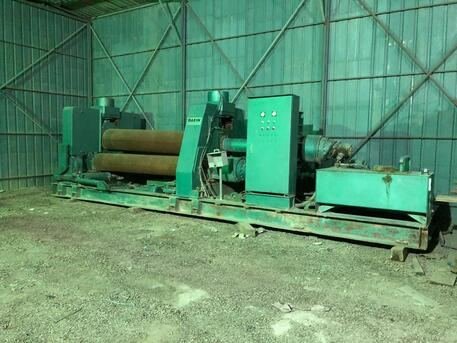

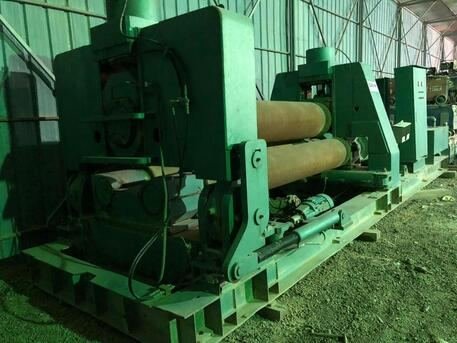

BENDING ROLLER MACHINE
Contact for price
Dammam · Posted 1h ago · 0 views
Meet in public places and never pay before you see the item. Expatriates KSA does not handle payments.
Description
BENDING ROLLER
Production Engineering Standard
Technical Specifications for Bending Roll M/C
Diameter of top upper roll: ?520 mm
Diameter of lower middle roll: ?550 mm
Diameter of side roll: ?500 mm
Bending speed: 2500 mm/min
Working pressure: 200 kg/cm2
Maximum bending pressure: 250 kg/cm2
Maximum driving pressure: 250 kg/cm2
Hydraulic pump (2 units): 130 liter
Hydraulic drive motor: 125 hp / 4p
Side cylinder: ?200 ST 500 mm
Tilting cylinder: ?100 ST 600 mm
Center cylinder: ?250 ST 150 mm
Length: 7,100 mm
Width: 3,000 mm
Height: 3,250 mm
Weight: 47,000 kg
Oil tank capacity: 800 liter
Power voltage: 440V / 3 phase
Prices are negotiable
Production Engineering Standard
Technical Specifications for Bending Roll M/C
Diameter of top upper roll: ?520 mm
Diameter of lower middle roll: ?550 mm
Diameter of side roll: ?500 mm
Bending speed: 2500 mm/min
Working pressure: 200 kg/cm2
Maximum bending pressure: 250 kg/cm2
Maximum driving pressure: 250 kg/cm2
Hydraulic pump (2 units): 130 liter
Hydraulic drive motor: 125 hp / 4p
Side cylinder: ?200 ST 500 mm
Tilting cylinder: ?100 ST 600 mm
Center cylinder: ?250 ST 150 mm
Length: 7,100 mm
Width: 3,000 mm
Height: 3,250 mm
Weight: 47,000 kg
Oil tank capacity: 800 liter
Power voltage: 440V / 3 phase
Prices are negotiable
